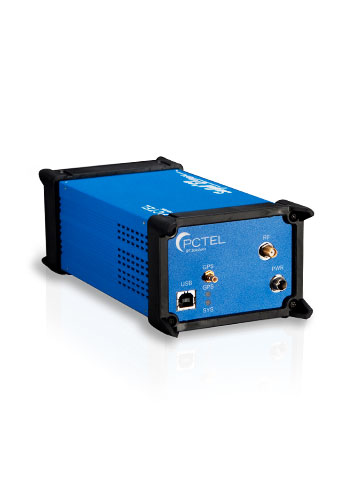

SeeGull EXflex Scanning Receiver
- Lượt xem: 772
- Mã sản phẩm: 0
- Giá : Liên hệ
The SeeGull® EXflex® combines the flexibility to test mobile networks on frequency bands from 150 MHz to 6 GHz with the proven performance and reliability of the SeeGull EX platform. It supports most major wireless technologies used around the world in a single unit. Unlike some competitive offerings which require additional hardware modules, the EXflex adds bands and technologies with a simple field upgrade. The EXflex combines cutting-edge performance and competitive pricing with a five-year standard warranty, with optional Pay-Per-Use licensing to maximize value and flexibility.
Benefits
- Increase productivity with multi-technology, multi-band scanning
- Future-proof investment: band range from 150 MHz to 6 GHz
- Proven high dynamic range for expanded signal detection
- Advanced analysis of LTE resource blocks and subbands
- Reduce complexity by eliminating the need for separate modules
- Improve in-building testing productivity
- Test Multi-Operator Networks with One Unit
- Accurate CDMA/EV-DO Measurements with GPS Holdover
- Low Power Consumption Maximizes Battery Life
Feature comparision
| Feature | MXflex® | IBflex® | EXflex® |
|---|---|---|---|
| Supported Technologies | LTE (FDD and TDD) WCDMA CDMA EV-DO GSM |
LTE (FDD and TDD) WCDMA CDMA EV-DO GSM TD-SCDMA Wi-Fi |
LTE (FDD and TDD) WCDMA CDMA EV-DO GSM TD-SCDMA |
| Supported Bands per Unit | Unlimited | Unlimited | Unlimited |
| Technologies per Unit | 1-6 | 1-7 | 1-7 |
| Top N Scan Dynamic Range |
-20 dB (LTE) |
-20 dB (LTE) |
-20 dB (LTE) |
| Feature | MXflex® | IBflex® | EXflex® |
| Top N Scans per Second | Up to 150 | Up to 100 | Up to 100 |
| GSM Measurement Speed | 196 ch/sec | 190 ch/sec (typical) | 190 ch/sec (typical) |
| RSSI Measurement Speed | Up to 5,200 ch/sec | Up to 13,000 ch/sec | Up to 13,000 ch/sec |
| Relative Accuracy | +/-1 dB | +/-1 dB | +/-1 dB |
| Feature | MXflex® | IBflex® | EXflex® |
| Concurrent Measurements | Up to 3 Technologies | ||
| RSSI | • | • | • |
| Spectrum Analysis | • | • | • |
| Enhanced Power Scan | • | • | • |
| Feature | MXflex® | IBflex® | EXflex® |
| TD-LTE Power Analysis | • | • | • |
| Uplink Mode Measurements | • | • | • |
| Top N Scans | • | • | • |
| Color Code Scans | • | • | • |
| Feature | MXflex® | IBflex® | EXflex® |
| CW Measurements | • | • | • |
| LTE Bandwidths | Up to 20 MHz | Up to 20 MHz | Up to 20 MHz |
| LTE Sub-Channel Measurements | • | • | • |
| LTE 2×2 MIMO Measurements | • | • | |
| Feature | MXflex® | IBflex® | EXflex® |
| Layer 3 Measurements | LTE (FDD and TDD), WCDMA, GSM, CDMA, EV-DO | LTE (FDD and TDD), WCDMA, GSM, TD-SCDMA | LTE (FDD and TDD), WCDMA, GSM, TD-SCDMA |
| Blind Scan | • | • | • |
| Benchmarking Applications | • | • | • |
| Indoor Measurements | • | • | • |
| Feature | MXflex® | IBflex® | EXflex® |
| Modular Architecture | • | ||
| Field Configuration of New Technologies | • | • | • |
| Field Configuration of New Bands | • | • | • |
| Connect with Bluetooth®, USB, and Ethernet. | • | ||
| SD Card Storage | • | ||
| Feature | MXflex® | IBflex® | EXflex® |
| Windows® Support | • | • | • |
| Android™ Support | • |
